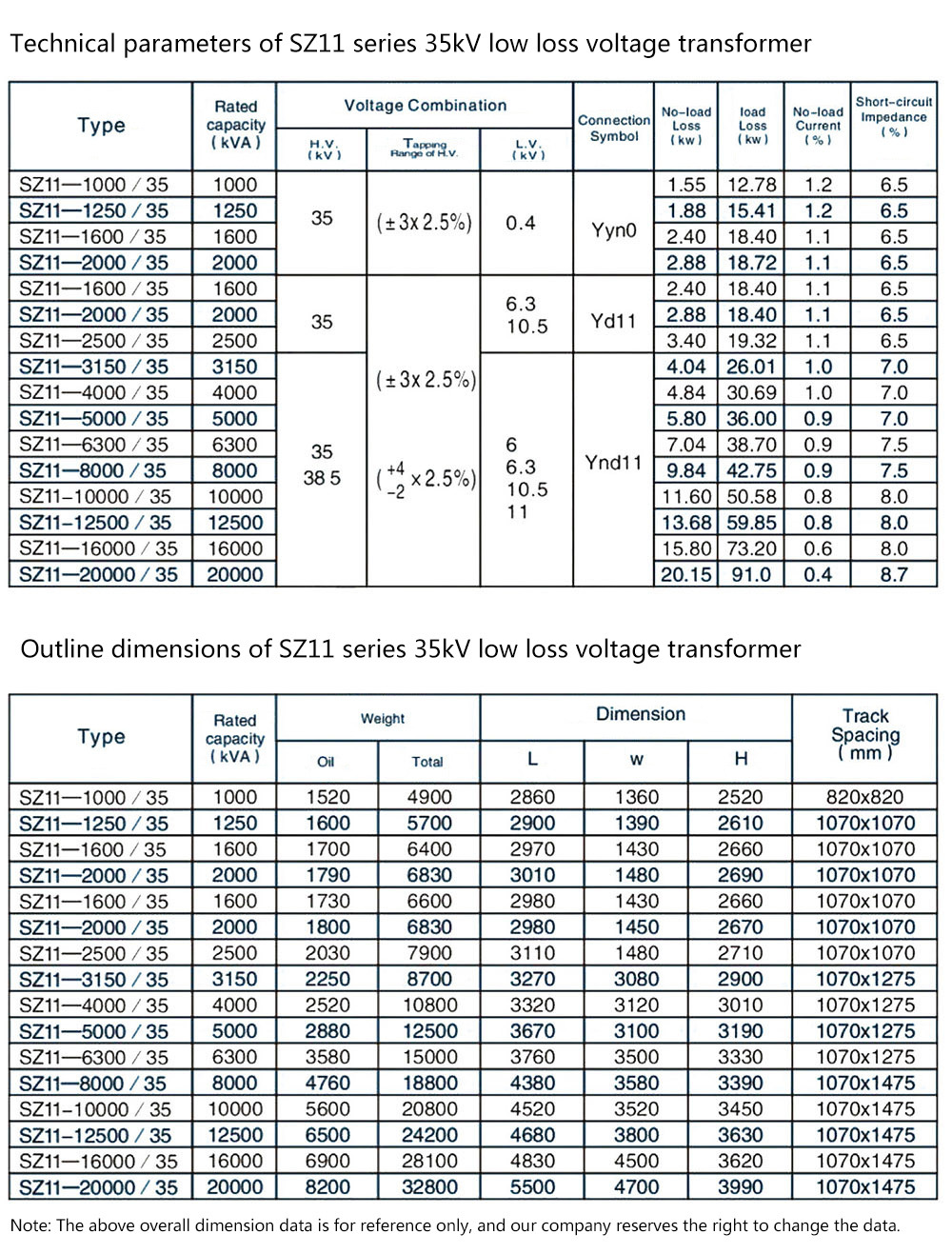

SZ11(13) 35kV on-load tap changer low-loss transformer
The performance of SZ11(13) 35kV on-load tap changer low-loss transformer produced by our company can meet the standards of Power Transformer (GBI094.1) and Technical Parameters and Requirements of Three-phase Oil-immersed Power Transformer (GB/ T6451). The iron core is made of the excellent cold-rolled silicon-steel sheet. The coil is made of the excellent oxygen-free copper. It has a beautiful appearance and is applied to industrial and agricultural power grids in urban and rural areas.
Performance and structural features
1. Its reliability is high, its performance is excellent, and its economic indexes are reasonable;
2. The iron core adopts three levels of joints in a stepped shape, and its surface is coated with curing paint to reduce the loss and the noise level;
3. The winding's structure is novel, the oil duct is designed reasonably, and a new insulating structure is adopted to improve the mechanical intensity and the short circuit resistant capability;
4. The oil tank form is diversified, beautiful and elegant.
